Configure IIS for OXPd



Internet Information Services (IIS) must be installed and configured for OXPd.

Open Internet Information Services (IIS) Manager on the ImageQuest server, expand Sites and right-click Default Web Site and select “Add Virtual Directory”.



Description: 3.jpg

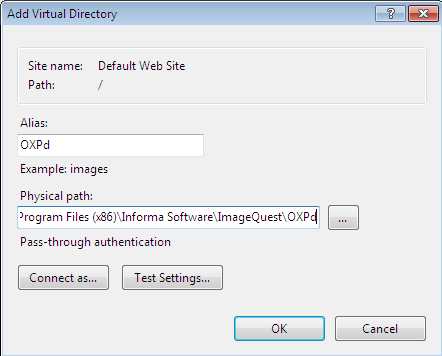

In the Add Virtual Directory dialog, type “OXPd” for the Alias and browse to and use the Informa Software\ImageQuest\OXPd directory on the ImageQuest Server for the Physical path.

Description: 3a.jpg





Click “OK” to close to save and add the new OXPd Virtual Directory.

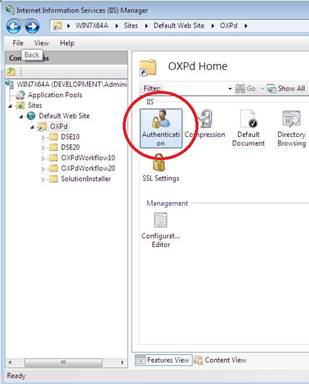

Confirm “Anonymous Authentication” is “Enabled” for the OXPd Virtual Directory by selecting OXPd and double-clicking “Authentication” to view the Status.

Description: 3b.jpg



If “Disabled”, right-click Anonymous Authentication and select “Enable”.



Description: 3c.jpg
